• 7*15W RGBAW+UV 6 in 1 outdoor slim par
    (F-715-6AB (7颗15W户外帕灯))

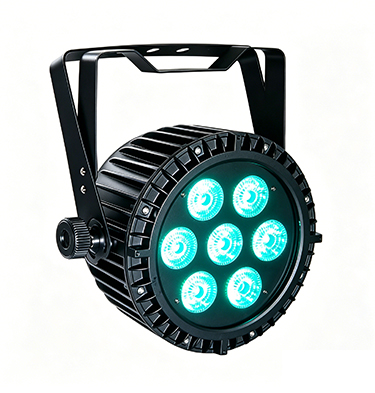

    F-715-6AB (7*15W RGBAW+UV 6 in 1 IP65 outdoor slim par)

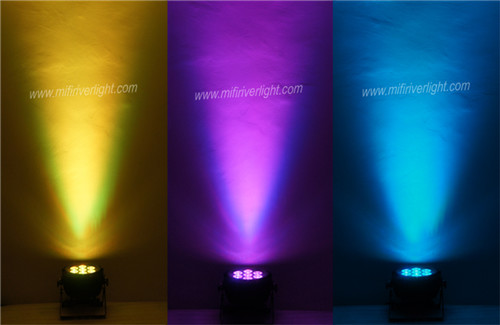

    F-715-6AB is an extremely compact unit, 7pcs of 15W RGBAW+UV 6 in 1 led, standard beam angle is: 40 degree (has 20 degree for optional), can delivers soft & amazing saturated colors. It is suitable for home, small places and truss using.



    Share to:
    product details

    F-715-6AB (7*15W RGBAW+UV 6 in 1 IP65 outdoor slim par)

    F-715-6AB is an extremely compact unit, 7pcs of 15W RGBAW+UV 6 in 1 led, standard beam angle is: 40 degree (has 20 degree for optional), can delivers soft & amazing saturated colors. It is suitable for home, small places and truss using.


    Advantage:

    1) Great brightness with 7pcs of 15W led.

    2) 0-100% linear dimmer, soft & smooth.

    3) Tiny shape with compact body.

    4) PMW driver >4KHZ, flicker free and no shape.

    5) IP65, suitable for any weather places.

    6) RDM (remote device management) for added flexibility.

    7) Double bracketed yoke doubles for floor stand.

    8) Factory price and accept changed in software.

    9) Can accept OEM or ODM, customized is acceptable.


    F-712-6AB-2 (24).jpg

    F-712-6AB-2 (25).jpg



    Specifications:

    1)      Light source: 7*15W RGBAW+UV 6 in 1 led.

    2)      Led beam angle: 25/40 degree, 42mm lens.

    3)      Strobe: 0-16 Hz, from slow to fast, adjusting.

    4)      0-100% linear dimmer.

    5)      Die cast aluminum housing.

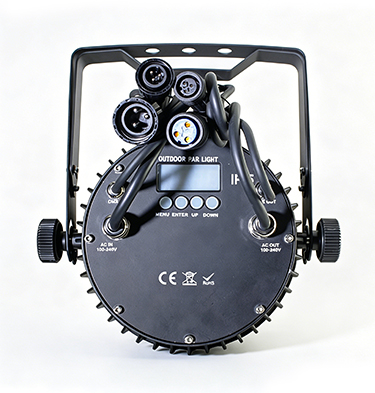

    6)      Control mode: DMX 512, master/slave, auto run.

    7)      Led digital display.

    8)      Date in/out: 3 pin / 5 pin XLR connectors for optional.

    9)      DMX channel: 3, 7, 8, 9, 14 channels for optional.

    10)  Power: 105W

    11)  Voltage: AC90-240V, 50-60Hz

    12)  IP 65, outdoor using.

    13)  Body size: 330*330*350mm/pcs

    Packing size: 670*340*730mm (4pcs/CTN)

    14)  N.W.: 4.5KG/pcs, G.W.: 5KG/pcs.


    F-712-6AB-2 (27).jpg

    F-712-6AB-2 (28).jpg


    规格:


    1)光源:7*15W RGBAW+UV 6合1 LED。


    2)LED光束角:25/40度,42mm镜头。


    3)频闪:0-16Hz,由慢到快,可调。


    4) 0-100% 线性调光器。


    5) 压铸铝外壳。


    6)控制方式:DMX 512,主/从,自动运行。


    7) LED 数字显示。


    8) 日期输入/输出:可选的 3 针 / 5 针 XLR 连接器。


    9) DMX通道:3、7、8、9、14通道可选。


    10) 功率:105W


    11)电压:AC90-240V,50-60Hz


    12) IP 65,户外使用。


    13) 机身尺寸:330*330*350mm/pcs


    包装尺寸:670*340*730mm(4pcs/CTN)


    14) 净重:4.5KG/个,毛重:5KG/个。
