Light Source:
Source: 24X20W 4-IN-1 RGBW LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50,000 hours
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics
24PCS high efficiency acrylic lens
25°/35°/45°Lens optional

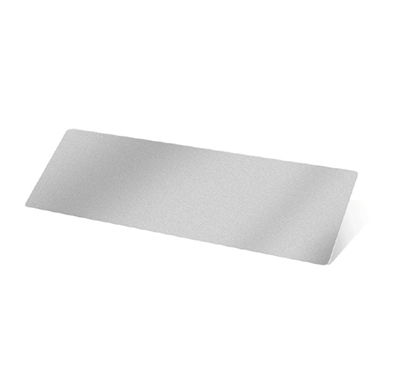

Easy-to-use diffuser fliter (customization options)
Easy-to-use 8 way barndoors (optional)
Colors
6 Segments controllable individually
Sophisticated 4 colors RGBW mixed
Even and soft light
coverage with pure mixing
Preset color macros
Strobe Effect
0-25Hz high speed shutter/strobeeffect with variable speed
Dimming System
0-100% Smooth linear LED dimming
Smoother dimming mode available
Control System
8/13/16/21/25/41 DMX channels
DMX512, RDM, Master-slave, Auto, W-DMX (optional)
Multi preset internal programs
Shielded input signal protection forstable signal without interference
Seetronic IP65 3-Pin or 5-Pin XLRconnectors IN/OUT
Display System
TFT LCD display

English/Chinese menu
4 control touch buttons
180°Reversible for LCD display
Display auto OFF
Cooling System
Active, Forced Air, Temperature regulated
Over temperature protection management
Power Supply
600W Power supply
AC100-240V 50/60Hz
Seetronic IP65 PowerCON TRUE1 IN/OUT
Housing
Aluminium, steel, plastic PC/ASA, rubber, Lens PE and tempered glass front
Tilt angle manually adjustable
Two side handles on base
Exterior finish: Black
Operating Condition
Operating positions:
all (device on floor or fixed to a support)
-25° to 45° ambient temperature
IP65 protection rating
Weight
N.W.: 6.6kg
Dimensions
Product Dimensions:
420(D)*140(W)*265(H)mm
