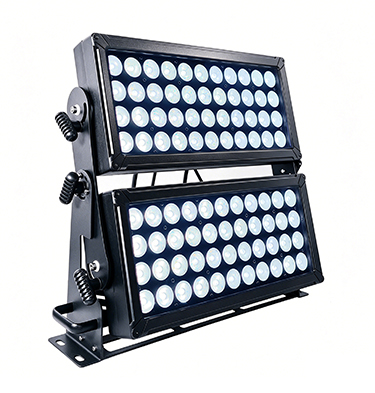

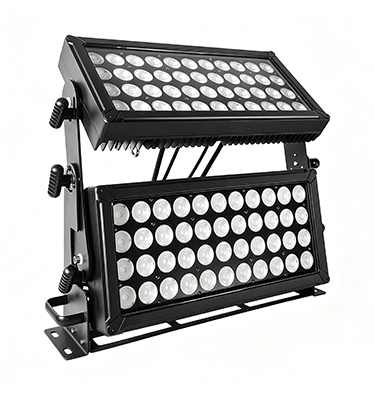

F-8810-4AD Outdoor Spotlight Specifications
(8810W RGBW Super Bright Outdoor Spotlight)*

1. Light Source

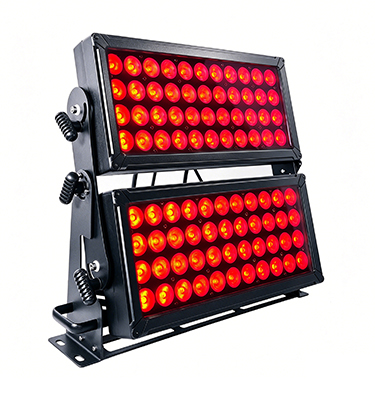

· LEDs: 88 x 10W RGBW 4-in-1 LEDs

· Flicker-Free: Yes, designed for broadcast TV and film applications.

· Lifespan: > 50,000 hours (L70 @ 25°C ambient temperature).

2. Optics

· Lens Type: 88 high-efficiency acrylic lenses

· Beam Angle Options: 25° / 45° (selectable)

3. Strobe & Dimming Effects

· Strobe: 0-25Hz high-speed shutter/strobe effect with variable speed control.

· Dimming:

o 0-100% smooth linear LED dimming.

o Additional smoother dimming modes available.

4. Control System

· DMX Channels: 4 or 8 channels (selectable)

· Protocols: DMX512, RDM (optional)

· Modes: Master-slave, Auto-run

5. Cooling System

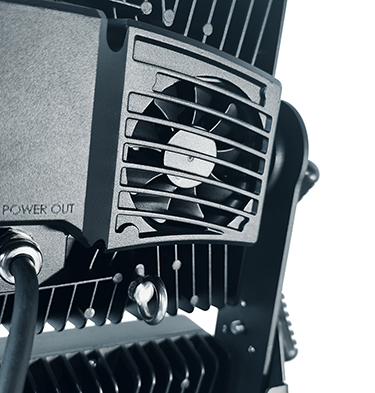

· Cooling: Efficient fan-assisted cooling

· Protection: Integrated over-temperature protection management

6. Power Supply

· Power Consumption: 900W (Max)

· Input Voltage: AC 100-240V, 50/60Hz

7. Housing & Operating Conditions

· Housing Material: Durable aluminum alloy

· Operating Positions: All positions (floor standing or truss/support mounted)

· Ambient Temperature: -25°C to 45°C

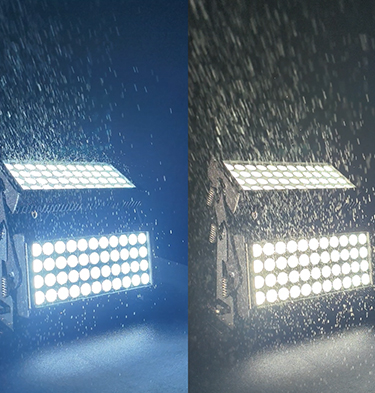

· IP Rating: IP65 (Dust tight and protected against jetting water)

8. Physical

· Net Weight: 18 kg (39.7 lbs)

· Gross Weight: 19.5 kg (43 lbs)

· Product Dimensions (L x W x H): 66 x 51 x 36 cm (26 x 20.1 x 14.2 inches)
