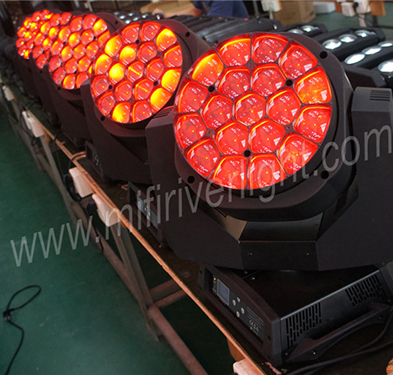

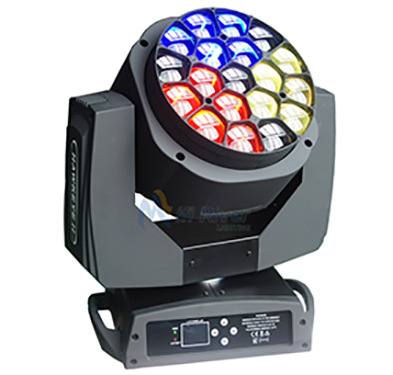

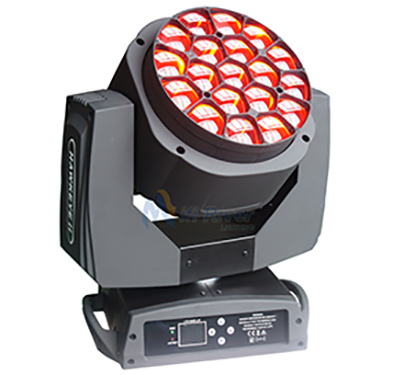

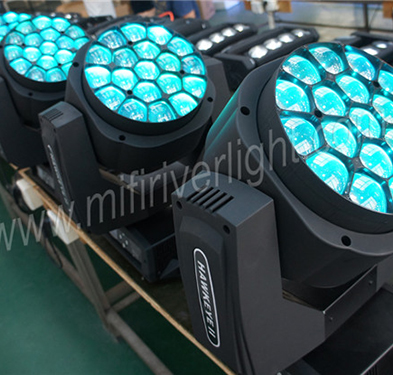

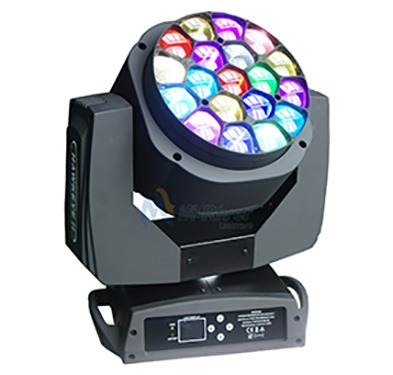

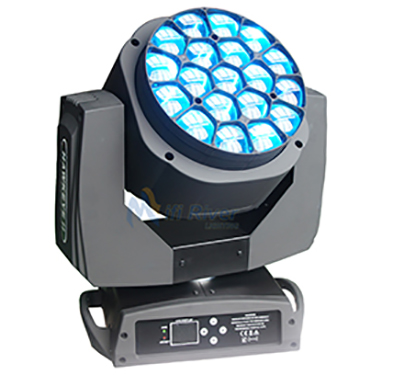

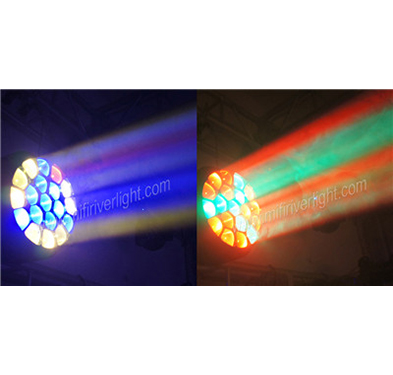

F-009 (BEE EYEs 19*15W OSRAM RGBW 4 in 1 led)
Characteristics:
1) Same effects as Original BEE EYES.
2) Very stable quality & nice functions.
3) 3 phase step motors.
4) Original OSRAM led, which has great brightness.
5) Rotation led plate & zoom function.
F-009 (BEE EYEs 19*15W OSRAM RGBW 4 in 1 led)
Characteristics:
1) Same effects as Original BEE EYES.
2) Very stable quality & nice functions.
3) 3 phase step motors.
4) Original OSRAM led, which has great brightness.
5) Rotation led plate & zoom function.
Specification
Light source: 19*15W OSRAM RGBW 4 in 1
Beam angle: 4-60 degree zoom.
Rated Power: 450W
LED drive current: 10000mA
IP: 20
DMX mode: 21CH(Standard)/35CH(Shapes)/78CH(Extend) /96CH(Extend RGBW) /92CH(Full)
N.W.: 15KG/pcs
G.W.: 18.2KG/pcs.
Features:

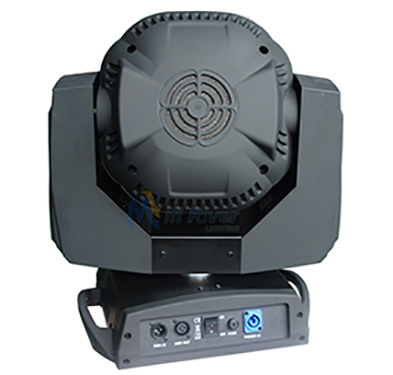

1) XLR sockets input/output 3 Pin
2) Power input/output
3) 4 kinds of control model: DMX512, Artnet, Sound active, Master/slave
4) LCD display screen
5) Display screen can be turned upside down with 180°to fit the installation in different place
6) Indoor operation temperature:-20°C-+40°C
7) 5 DMX modes:21/35/78/96/92CH
8) Dimmer:0-100% linear dimmer
9) Pan/tilt: 16bit fine pan/tilt control
10) Smooth and accurate locating
11) Pan: 540°, Tilt:210°
12) Motor rotation in forward and reverse can be setting up
电压:AC90-240v 50-60HZ
总功率:450W
光源:19颗四合一15W高亮度灯珠
光束角度:4-60°
频闪:1-25次/秒带多种频闪效果
调光:0-100%线性调光。
通道:内置7种通道模式21CH/23CH/35CH/78CH /92CH/97CH /99CH
控制:DMX512,自走,声控,Artnet(选配)
水平扫描:540度+16 bit微调,
垂直扫描: 250度+16 bit微调
显示屏:中英文彩屏显示
网卡(可选)
内置电池(选配)
净重:15KG
包装尺寸:480*340*510mm(1台/纸箱) ,毛重19KG
700*460*700mm(2台/航空箱) ,毛重56KG
特点:
1. 每颗灯珠可以单独控制。
2. 独特蜂巢设计的透镜可以无极旋转带来多种梦幻效果。
3. 显示屏可以自动旋转180°,以适应不同安装角度。
4. 集光束、染色、效果等多种用途与一身。
5. 扫描位置记忆功能,可自动复位。
6. 带风扇散热和温度自动检测功能,当系统检测到温度过高时会自动停止工作以保护灯具。
7: 地址码设置: 内置长寿命电池可自动充电,设置地址码时不需要接通灯具电源(选配)
