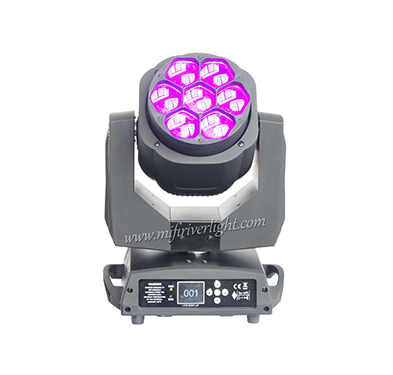

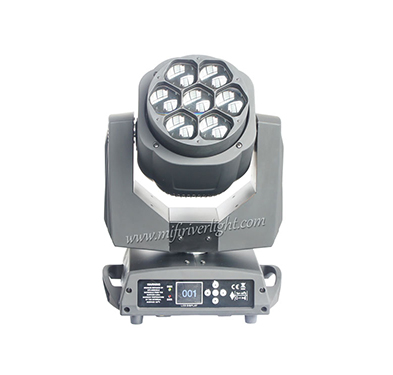

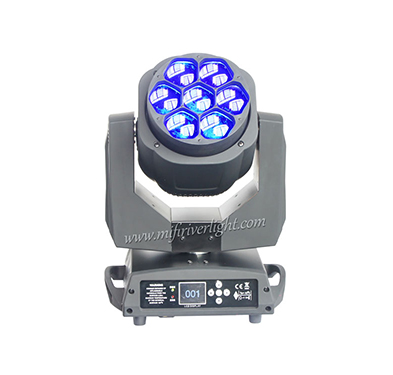

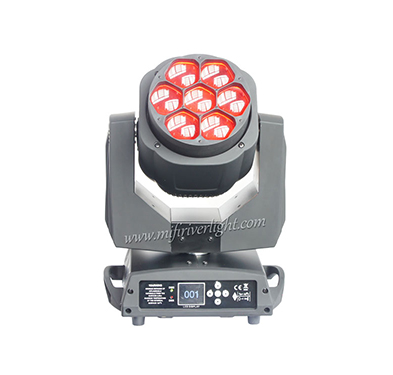

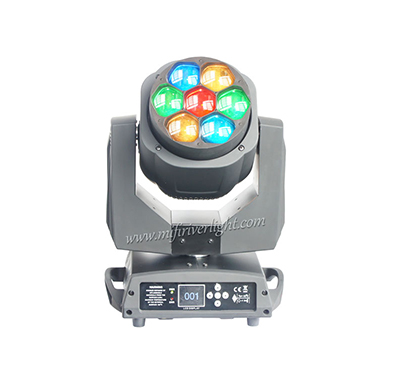

F-7-15 (7*15W OSRAM beam moving head (individual led))
Characteristics:
(1) 7*15W 4in1 RGBW LED Osram Ostar
(2) Compact honeycomb invisible front grid design
(3) Full-functional: beam, graphic, effects
(4) Wonderful" kaleidoscope""Vortex" effects
(5) Individual LED control
(6) Bi-directional/continuous rotating front lens
(7) CTO: Linear controlled 2500-8000K
(8) Shapes graphic built-in
SPECIFICATION
Light source:
7×15W Osram Ostar RGBW LEDs, 50,000 h.
Color temperature: 2500-8000k adjustable
Individual LED control for each parameter
Effects:
1) Operating modes: beam, Graphic,FX (Kaleido,Vortex effects)
2)Front Lens Bi-directional continuous Rotation
3)0-100% linear electronic dimmer
4)Adjustable speed stop/strobe effect,
5)with instantaneous blackout
6)channel for color temperature setting
7)RGBW auto-tuning
Control & channels:
DMX512: 3 pin XLR IN-OUT sockets
5 channel modes
Powercon connect: Power in/out
Display: backlit blue-and-white graphic LCD display
Movement:
Movement by means of two 3 phase stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Power & voltage:
Power: 120W
Voltage: 100-240V 50/60Hz
