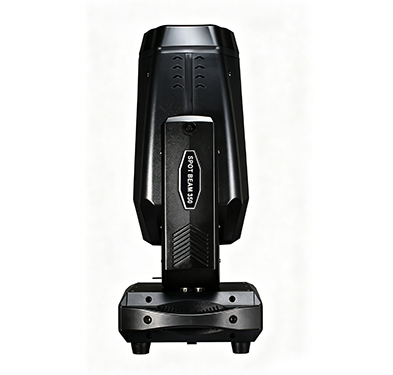

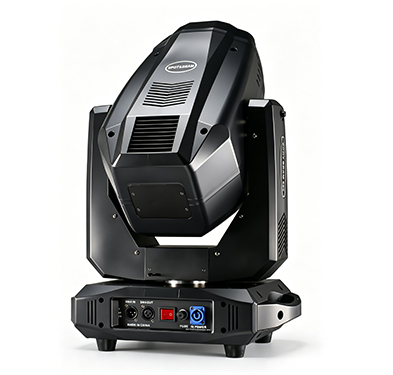

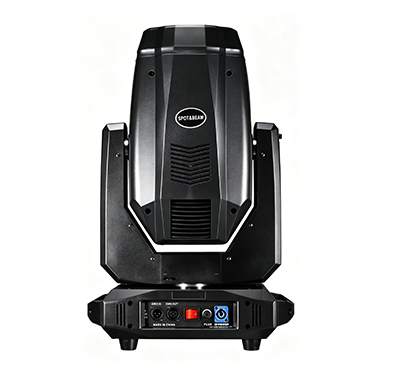

F-350SM (350W Beam + Spot + Wash 3 in 1 + CMY+CTO) Moving Head
Specifications:
Light Source
PHILIP HRI 350W or Osram 371W (7500k, 1500hrs)
Strobe
Double shutter blades. 0.5-14. F.P.S
Dimmer
0-100% linearly adjustable
Colors
CMY Linear color mixing with macro
CTO function:
1 Color wheel: 14 dichroic color filter(CTO) 2800-6500K, plus open
Rainbow effect with bi-directional and variable speeds
Stepping/linear color changing
Gobo
1 Fixed gobo wheel: 15 gobos plus open
bi-directionally rotating, and shakable effect at variable speed
1 Rotating gob wheel: 9 interchangeable gobos plus open
Bi-direction rotating at variable speeds
Prism
Two prism(standard: 8-facet and 16-facet prism
Optional: 3-facet/16-facet linear prism or flower prism
Bi-directional rotation at variable speeds
Frost
one frost filter
Iris
Electric Iris 100%-10%, the beam angle can be adjustable.
Focus
DMX linear focus, the gobo can be intelligent auto focus
Zoom
DMX linear zoom
Head Movement
Pan 540, Tilt 245 degree with auto position correction
Input Voltage
100-240V AC, 50/60Hz
Power Consumption: 470W
Light Angle
Beam Mode: 2.3-10
Spot mode: 1-40
Wash Mode: 5-40
Control
International DMX512, 3 pin and 5 pins interface
Short mode 30channels
self-test mode
Other Functions
Adjustable pan & Tilt speed
LCD display screen
Fixture and lamp hours display
Modular structure for easy maintenance
Interface USB: download the instruction, library, upload Logo etc.
Physical
Housing: high temperature engineering plastic, IP20
Ambient temperature: Maximum 45 C
Clamp: built-in aluminum two G clamp, easy for hung up.
Weight
Net weight: 22.5kg
Measurement: 42x27x64(cm)
350W光束+图案+洗墙三合一摇头灯
规格:
光源
HRI 350W 灯珠(7500k,1500 小时)
频闪
双快门叶片。 0.5-14。 F.P.S
调光器
0-100% 线性可调
颜色
CMY 线性混色与宏
首席技术官职能:
1色轮:14二向色滤色片(CTO)2800-6500K,加开
具有双向和变速的彩虹效果
步进/线性颜色变化
图案
1个固定图案盘:15个图案加开
双向旋转,变速摇动效果
1 个旋转图案盘轮:9 个可互换图案盘和开放式图案盘
双向变速旋转
棱镜
二棱镜(标准:8面棱镜和16面棱镜
可选:3面/16面线性棱镜或花棱镜
双向变速旋转
霜
一个霜过滤器
鸢尾花
电动光圈100%-10%,光束角度可调。
变焦
DMX线性对焦,图案可智能自动对焦
调焦:
DMX线性变焦
头部运动
平移 540,倾斜 245 度,自动位置校正
输入电压
100-240V 交流电,50/60Hz
功耗:470W
光线角度
光束模式:2.3-10
现货模式:1-40
洗涤模式:5-40
控制
国际DMX512,3pin和5pin接口
短模式30通道
自检模式
其他功能
可调节平移和倾斜速度
液晶显示屏
灯具和灯泡使用时间显示
模块化结构,易于维护
接口USB:下载指令、库、上传Logo等。
身体的
外壳:耐高温工程塑料,IP20
环境温度:最高 45 C
夹子:内置铝制两G夹子,便于挂断。
重量
净重:22.5kg
尺寸:42x27x64(cm)
