Specifications:

Light Source: 178 × 2W RGBALC LEDs
Color Temperature: 1800~8500 K, with fully variable 16-bit color temperature adjustment
Total Fixture Output Luminous Flux: 12700 Lm

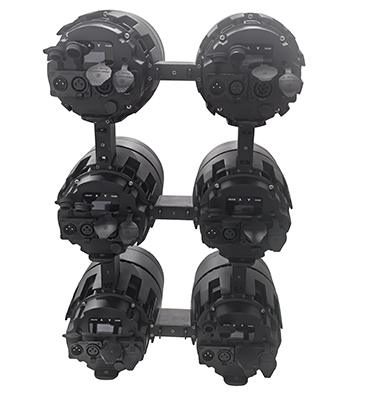

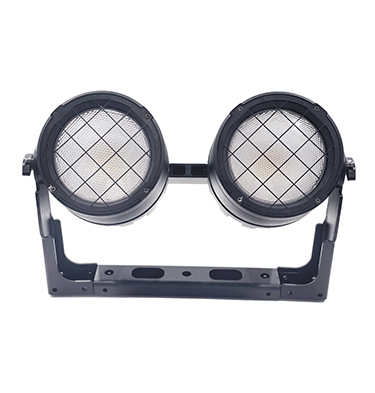

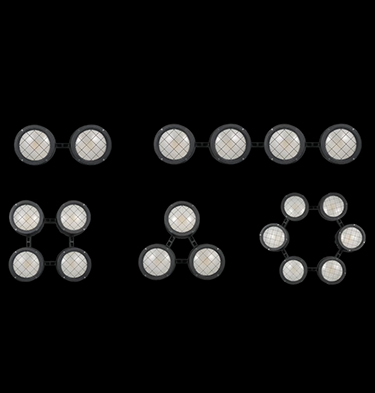

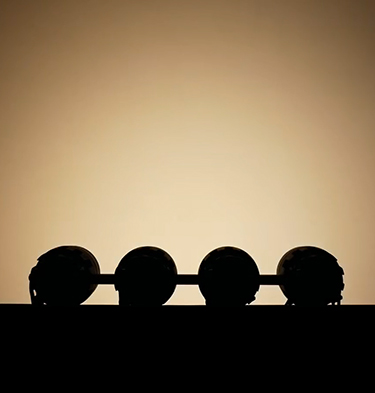

Clever modular design, usable as a single light, two-eye, or four-eye fixture, etc.
IP65 protection rating, fearless in wind and rain, suitable for both indoor and outdoor use.

Technical Parameters:

Optics

· Light Source: 178*2W, RGBALC six-color light source

· Beam Angle: 65° (35° / optional lenses like optical mirrors)

· Total Fixture Output Luminous Flux: 12700 Lm

· Color Temperature: 1800~8500 K

· Color Rendering Index (CRI): 92+

· Light Source Life: 20000 H

Effects

· Fast Strobe: 1～25HZ

· LED Refresh Rate: 900~ 25KHz

Control and Programming

· Control Channels: 1 / 2 / 3 / 4 / 6 / 7 / 13 / 21 / 10-1 / 15-1 / 10-2 / 15-2 CH

· Protocol: Standard DMX512 protocol, RDM protocol

· Data Connection: 3-pin XLR input/output

· Display: OLED display control panel

Software

· Convenient and fast software updates via DMX signal

· Intelligent temperature protection to ensure LED lifespan

Fixture Structure and Heat Dissipation

· Die-cast aluminum alloy structure

· Natural heat dissipation

· Salt corrosion resistant

Other

· Protection Rating: IP65

· Operating Environment: -40℃—45℃

· Startup Environment: -20℃—45℃

Power and Consumption

· Input Voltage: AC 100V-240V 50/60HZ

· Rated Power: 350W

Dimensions and Weight

· Fixture Dimensions: 266 × 151 × 301 mm

· Net Weight: 2.8 KG/pc
