RHINO U240B Console

Technical feature

􀁺 12 scanners of 16 channels each

􀁺 6 programmable chases have 30 banks each

􀁺 20 banks have 8 programmable scenes each

􀁺 8 slider for manual control of channels

􀁺 Assignable joystick for ease of movement

􀁺 File dump allows data to be sent for

received between 2 units

􀁺 Auto mode program controlled by speed

and fade time sliders

􀁺 All fade time adjustable

􀁺 In fade mode, ALL (all channel) or X/Y

only could be selected separately.

􀁺 Reversible DMX channels fixture to react

in opposition to others in a chase

􀁺 8 channel or 16 channel mode

􀁺 Fine adjustment for wheel PAN and TILT

􀁺 Blackout master button

􀁺 Manual override button allow you to grab

any fixture on the fly

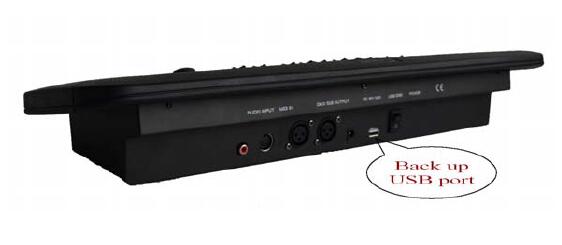

􀁺 Data backup & restore with U-disk

􀁺 USB disk backup and uploaded

􀁺 Power failure memory

􀁺 LED lamp connector

􀁺 Power input: DC 9-12V 1000mA

􀁺 Audio input: by built-in microphone or line

in, 100mv-1vpp

􀁺 DMX in/out: 3 pin male/female XLR

􀁺 Midi in: 5 pin multiple socket

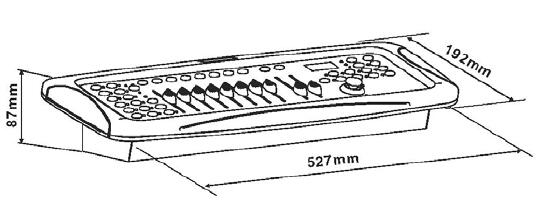

􀁺 Dimension : 527mm × 192mm ×87mm

􀁺 Net Weight: 2.6kg
