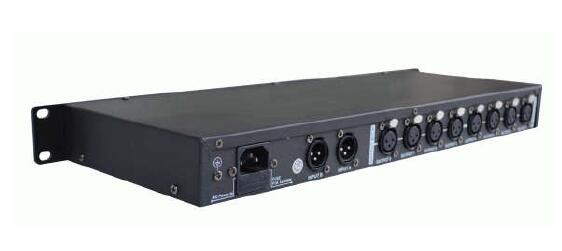

F-1330 (8 ways DMX distributor)

Advantaged Feature

* High Voltage Protection

* Independent input and output signal (include earth cable of signal)

* Separate signal amplifier system and individual

*   LED light of each channel

* Wide input stable electric power supply: AC88 ~ 256V

* Light weight

Technical feature

* DMX512/1990 Standard

* Input/output: XLR Pin3 Optional:XLR Pin5

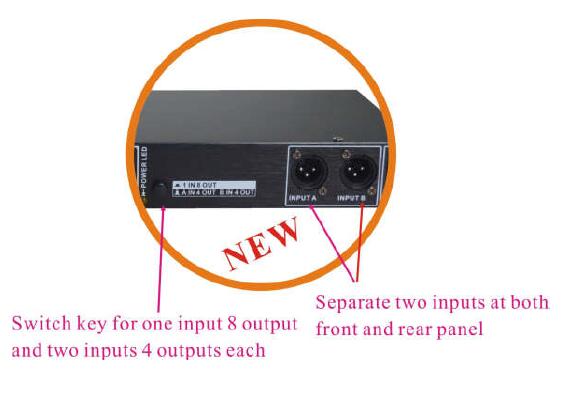

* Eight-way DMX distributor with two input (It can be changed into a into eight out through the buttons)

* Input Voltage: AC88~256V 50/60Hz

* Dimension: 19" 1U, 482mm×173mm×44mm

* Net Weight: 2.01 Kg

* Standard DMX512 signal; 2.4G wireless

*  DMX512 receiver

* Communication distance:300m (visible distance)

TIPS:

When use two same position outputs at both front and rear panel at same time, this two outputs can be connected 32 lighting fixtures total.

When use single side output at same position, this output can be connected with 32 lighting fixtures maximum.
