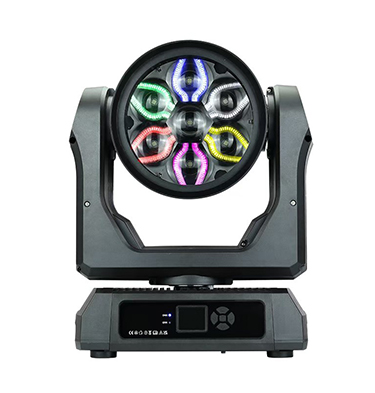

F-760

Hybrid IP | 7x60W RGBW Wash-Beam-FX

IP65 Outdoor Rated • Professional Hybrid Effects

Core Highlights

· Dual Light Source: Features 7 high-output 60W RGBW LEDs for powerful beams and washes, plus 138 SMD LEDs for stunning background "Aura" and kaleidoscope effects.

· Exceptional Zoom Range: Motorized linear zoom from a sharp 4° beam to a wide 56° wash.

· All-Weather Performance: IP65-rated housing, perfect for outdoor festivals, permanent installations, and demanding tours.

· Creative Effects: Capable of producing intricate kaleidoscope effects, high-speed strobing, and smooth color transitions.

Light Source & Optics

· Main LED Engine: 7 x 60W RGBW (4-in-1) LEDs

· Background Effect: 138 x 0.15W RGB LEDs (for Kaleidoscope/Aura effects)

· LED Lifespan: Approx. 20,000 hours

· Color Temperature: 6,500K (at full intensity)

· CRI: 67

· Zoom Range: 4° – 56° (Motorized Linear Zoom)

Control & Programming

· Control Modes: DMX512, RDM, Master/Slave, Auto-run, Sound-Active

· DMX Channels: 2 modes (16 or 24 Channels)

· Movement: 540° Pan / 270° Tilt (16-bit resolution with automatic position correction)

· Display: LCD display with an intuitive 5-button touch interface

· CTO: Linear color temperature adjustment

Effects & Performance

· Versatility: Beam, Wash, and Kaleidoscope FX modes

· Dimmer: 0–100% smooth linear electronic dimming

· Strobe: 1–20Hz electronic strobe with variable speed

· Strobe Macros: Random strobe, pulse effect, and opening/closing pulse functions

· Operation: Flicker-free performance for film and television

Power & Physical

· IP Rating: IP65 (Professional weatherproof protection)

· Input Voltage: AC 90-240V, 50/60Hz

· Rated Power: 300W

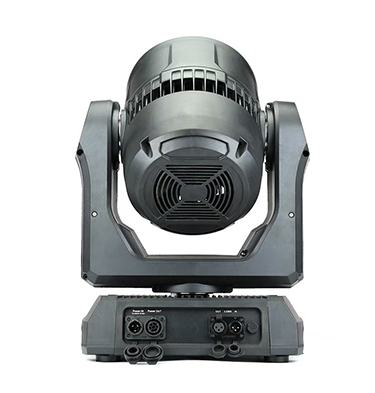

· Connectors: 3-pin XLR In/Out (Signal); PowerCON In/Out (Power)

· Working Temperature: -10°C to 40°C

· Net Weight: 14 kg

· Dimensions: 388 x 259 x 491 mm
