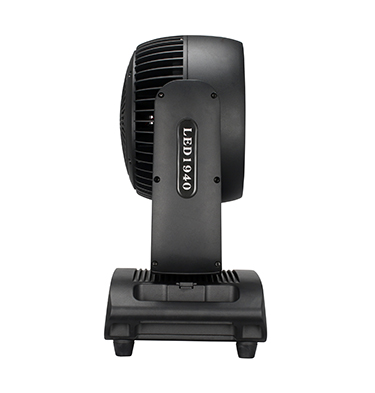

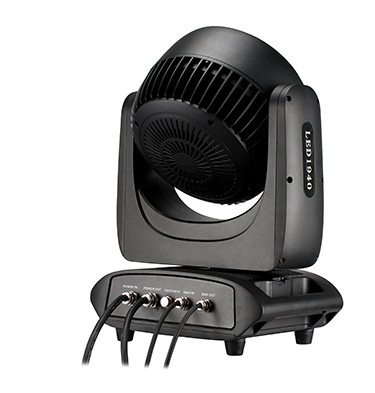

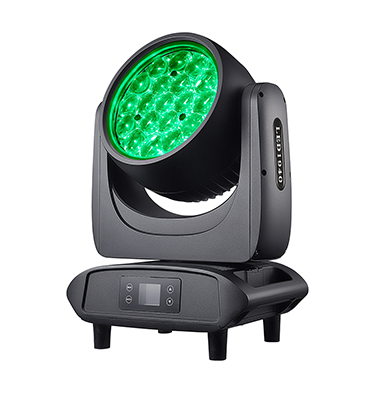

F-19-40ZS

19x40W RGBW Outdoor Bee Eye Moving Head (IP66)

The F-19-40ZS is a high-performance, all-weather moving head that combines powerful wash, sharp beam, and stunning "Bee Eye" effects. With its rotating front lens, it creates breathtaking kaleidoscope visuals and dynamic pixel-mapped effects, making it ideal for large-scale outdoor events.

Optical System

Light Source: 19 x 40W 4-in-1 RGBW High-Brightness LED Chips

Zoom Range: 4° – 60° (Motorized Linear Zoom)

Bee Eye Effects: Rotating front lens for kaleidoscopic effects, vivid beam arrays, and macro-pattern pixel mapping.

LED Lifespan: Approx. 50,000 – 100,000 hours

Electrical Specifications

Input Voltage: AC 90-240V, 50/60Hz

Total Power Consumption: 760W

Dynamic Effects

Color Mixing: Smooth RGBW linear color mixing with rich, saturated colors and pure white.

Dimmer: 0-100% smooth linear electronic dimming.

Strobe: High-speed electronic strobe (1-25 flashes per second) with variable pulse and random effects.

Movement:

Pan: 540° (16-bit fine adjustment)

Tilt: 270° (16-bit fine adjustment)

Automatic Pan/Tilt position correction.

Control & Programming

Control Modes: DMX512, Auto-Run, Master/Slave, and Sound Active.

DMX Channels: 5 Channel Modes (22CH / 30CH / 54CH / 58CH) for flexible to advanced pixel control.

Display: Bilingual LCD Menu (Chinese/English).

Physical & Construction

Housing: High-strength, heat-resistant die-cast material.

Protection Rating: IP66 (Outdoor rated, protected against heavy rain and dust).

Net Weight: 14.0 kg

Gross Weight: 16.5 kg

Dimensions: 430 x 360 x 520 mm (Single Unit Carton)
