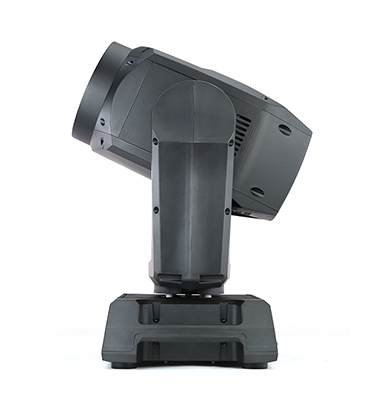

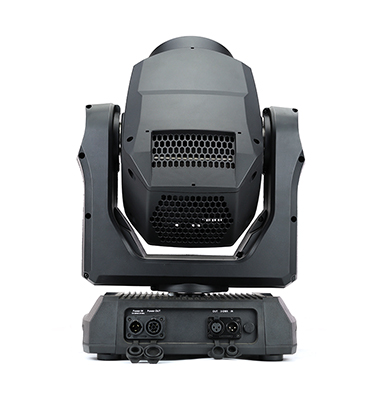

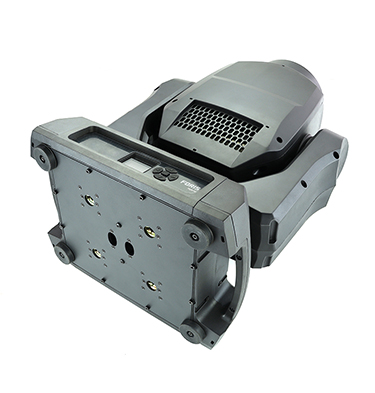

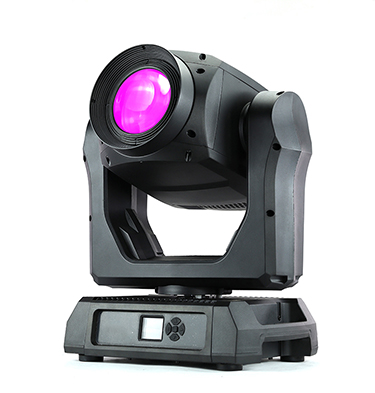

F-300-3IP LED BSW| 300W IP65 Outdoor Moving Head

Beam • Spot • Wash

The DMX channel mapping for the F-300-3IP is fully compatible with the Robe LEDPOINTE

Core Highlights

· Weatherproof Performance: IP65-rated housing designed for professional outdoor events and permanent installations.

· Advanced Color Mixing: Full CMY linear color mixing system for a nearly infinite palette of vibrant colors and subtle pastels.

· Lightweight Design: Weighing only 18.5 kg, it is exceptionally easy to transport and rig for an IP65-rated moving head.

· Versatile Optics: Wide motorized zoom range from a piercing 2° beam to a broad 40° wash.

Light Source & Optics

· Light Source: 300W High-Output LED Module

· LED Life Expectancy: Approx. 20,000 hours

· Native Color Temperature: 8800K

· Zoom Range: 2° – 40° (Motorized Linear Zoom)

· Focus: Motorized precision linear focus (8/16-bit)

Color System

· CMY Mixing: Independent Cyan, Magenta, and Yellow (0-100% linear mixing)

· Color Wheel: 13 dichroic colors + open, supporting half-colors and bidirectional rainbow effects

Gobos & Effects

· Rotating Gobo Wheel: 9 interchangeable gobos + open (indexing and bidirectional rotation)

· Static Gobo Wheel: 11 fixed gobos + open, with variable speed "gobo shake"

· Prism 1: Independent 3-facet rotating prism

· Prism 2: Independent 6-facet linear rotating prism

· Prism Overlay: Prisms can be superimposed to create complex, multi-layered visual effects

· Frost: Dual-level frost system (Light and Medium) for versatile soft-edge effects

Movement & Control

· Pan/Tilt: 540° Pan / 270° Tilt (16-bit resolution with automatic position correction)

· Control Protocols: DMX512, RDM, Master/Slave, Auto-run

· DMX Channels: 26 Channels

· Strobe: 1-20Hz high-speed strobe with pulse, synchronous, and asynchronous effects

· Dimmer: 0-100% smooth linear dimming

· Display: LCD display with 5-button menu navigation

Power & Physical

· IP Rating: IP65 (Waterproof and dust-tight)

· Housing: Durable Die-cast Aluminum and flame-retardant plastic

· Cooling: Intelligent silent fan system with variable speed control

· Connectors: TRUE1 PowerCON In/Out; 3-pin XLR In/Out (Signal)

· Input Voltage: AC 100-240V, 50/60Hz

· Power Consumption: 300W

· Net Weight: 18.5 kg

· Dimensions: 388 x 256 x 533 mm
