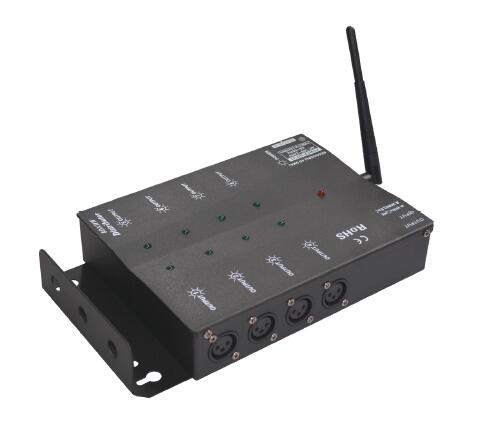

F-1340 (8 ways DMX distributor)

Advantaged Feature

* Multiple Installation Methods 8DX DMX distributor

* High Voltage Protection

* Independent input and output signal (include earth cable of signal)

* Separate signal amplifier system and individual

*   LED light of each channel

* Neutrik standard power input connector is very useful for any rental and mobile shows.

* Multiple installation methods to meet variety places use purpose.

* Wide input stable electric power supply: AC88 ~ 256V

* Light weight

Technical Parameter

* DMX512/1990 Standard

* Input/output:

*  Standard: XLR Pin3

*  Option: XLR Pin5 up to order

* Eight-way DMX distributor with one input

* Input Voltage: AC88～256V 50/60Hz

* Dimension: 255mm×159mm×45mm

* Net Weight:1.32 Kg

* Standard DMX512 signal; 2.4G wireless DMX512 receiver

* Communication distance:300m (visible distance)
