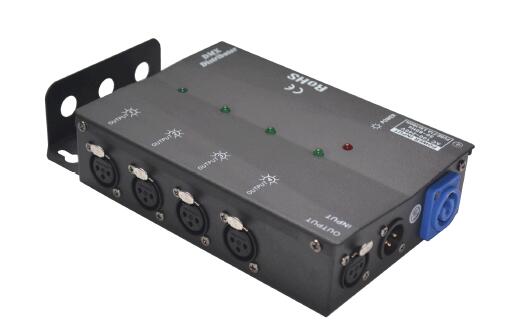

F-1327 (4 ways dmx distributor)

Advantaged Feature

* Multiple Installation Methods 4DX DMX distributor

* High Voltage Protection

* Independent input and output signal (include earth cable of signal)

* Separate signal amplifier system and individual, LED light of each channel

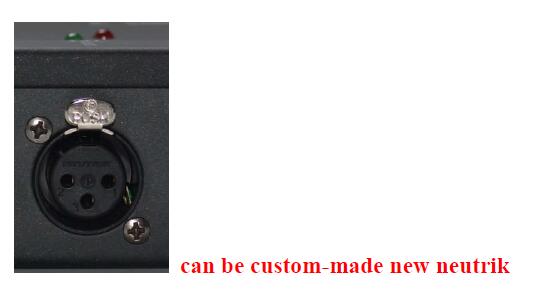

* Neutrik standard power input connector is very useful for any rental and mobile shows.

* Multiple installation methods to meet variety places use purpose.

* Wide input stable electric power supply: AC88 ~256V

* Light weight

Technical Parameter

* DMX512/1990 Standard

* Input/output:

*  Standard: XLR Pin3

*  Option: XLR Pin5 up to order

* Four-way DMX distributor with one input

* Input Voltage: AC88~256V 50/60Hz

* Dimension: 217mm ×124mm × 48mm

* Net Weight: 0.85Kg
